Trimble

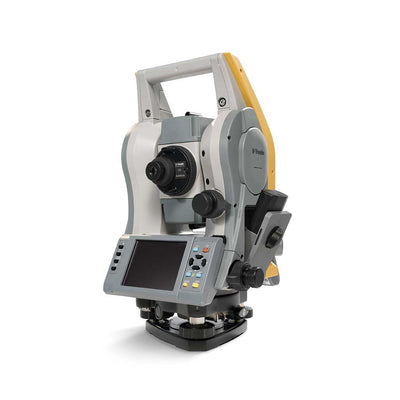

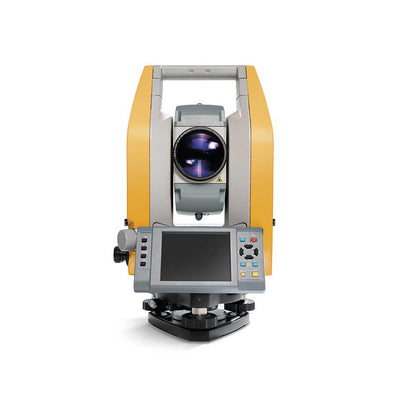

Trimble C5 5'' - Estación Total



Descripción

Trimble C5 5" aumenta su productividad y disminuye el tiempo para la captura de datos. Su diseño compacto, ligero y robusto, su potente medición sin prisma (EDM) de largo alcance, sumado a la tecnología “Autofocus” para un enfoque preciso y rápido, la convierten en una estación total confiable, para rendir al máximo a los niveles más altos.

Especificaciones

Precisión con prisma4: ±(2+2 ppm × D) mm
Precisión con sin prisma : ±(3+2 ppm × D) mm
Enfoque automático

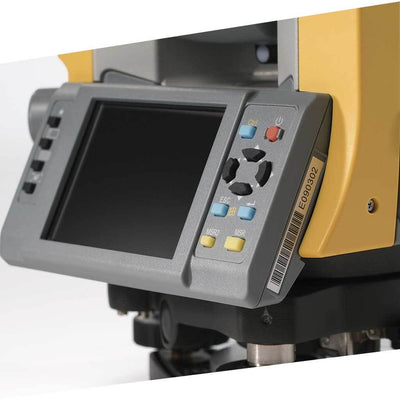

Doble pantalla LCD con retroiluminación (640 x 480 píxeles)
Sistema operativo: Windows® Embedded Compact 7
Procesador: Doble núcleo 800 MHz
Memoria de puntos: 512 MB de RAM, 4 GB de memoria Flash
Plomada interna: Óptica o Láser Clase 2
Plomada óptica: Aumento: 3x
Campo de visión: 5°
Distancia de enfoque mínima: 0,5 m
Dimensiones (Ancho x Profundidad x Alto): 206 mm x 169 mm x 318 mm
Peso (aprox.) unidad principal: 4,3 kilos





Incluye

  • Estación total

  • Tripode fibra/madera

  • Jalón

  • Prisma


Video
Datasheet

Descargar Datasheet
