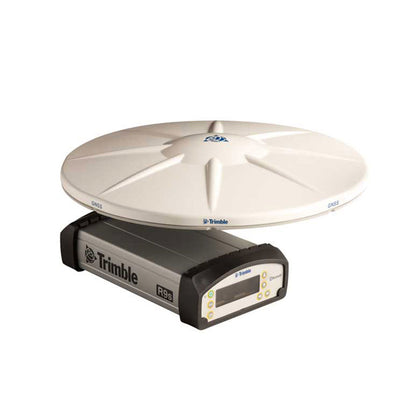

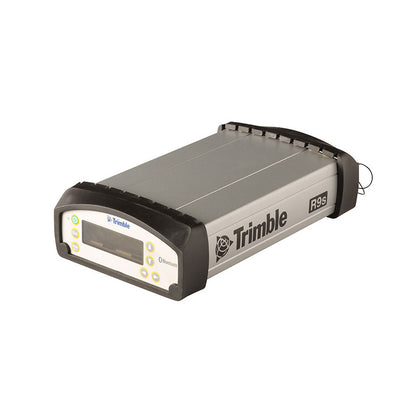

Trimble R9s

Description

The Trimble technologies integrated into the Trimble R9s receiver constitute a unique and very complete combination. The receiver is integrated with Trimble CenterPoint™ RTX, Trimble xFill™, and Trimble 360 technologies, which offer surveyors an unparalleled option for their modular requirements. Compatible with GNSS signals from all existing and planned constellations and all satellite augmentation systems, making it a solid GNSS investment for today and for the long-term future.

Specifications

Dimensions (Length × Width × Depth): 24 cm × 12 cm × 5 cm
Weight: 1.65 kg receiver with internal battery and radio / 1.55 kg receiver with internal battery and without radio
Waterproof: IP67 for immersion up to 1 meter deep, dustproof
Internal 7.2 V, 7800 mA-hr integrated lithium-ion battery
Power consumption: 6.0 W in mobile receiver mode with internal Rx radio / 8.0 W in base receiver mode with internal Tx radio
Two Trimble Maxwell 6 GNSS chipsets for a total of 440 channels
Trimble EVEREST™ multipath error reduction technology
Trimble 360 receiver technology Current satellite signals are tracked simultaneously: GLONASS, Galileo: L1, Beidou (COMPASS): B1, B2 CenterPoint RTX Positioning rate: 1 Hz, 2 Hz, 5 Hz, 10 Hz, and 20 Hz
Correction formats: CMR, CMR+, CMRx, RTCM 2.1, RTCM 2.2, RTCM 2.3, RTCM 3.0, RTCM 3.1
Observables: RT17, RT27, RTCM 3.x Ethernet: via a multi-port adapter Wireless technology
Bluetooth9: fully integrated and sealed 2.4 GHz Bluetooth module Capacity: 52 MB
External storage: USB Flash drive or external disk drive
