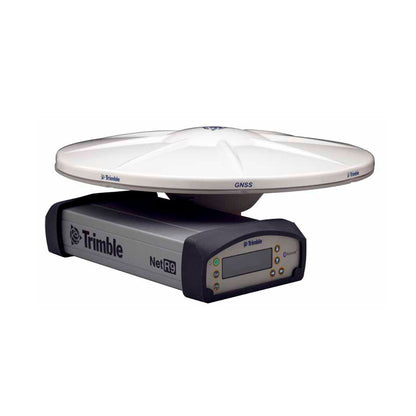

Trimble NETR9

Description

The Trimble NetR9 multipurpose GNSS infrastructure is an advanced GNSS receiver designed to function as an active or continuous reference station. Its ability to connect directly to a LAN, coupled with its web interface, makes the NetR9 a powerful GNSS receiver. With Trimble NetR9, it is possible to manage the creation of up to 8 different GNSS raw data logging sessions, send differential corrections via internet or radio, send operational notifications and files via email, among other options.

Trimble NetR9, in conjunction with Trimble 4D Control, allows for monitoring campaigns through various processing engines, both in real-time and post-processing. In the realm of generating network differential corrections, it can be used with Trimble Pivot, which also enables the management of large networks of reference stations, centralizing this entire process on a web-viewable server if necessary.

Specifications

• 440 channels
• Compatible with GPS, Glonass, and Galileo
• Compatible with modernized signals: L2C and L5
• 8GB memory
• 50Hz data capture rate

Video

Datasheet
