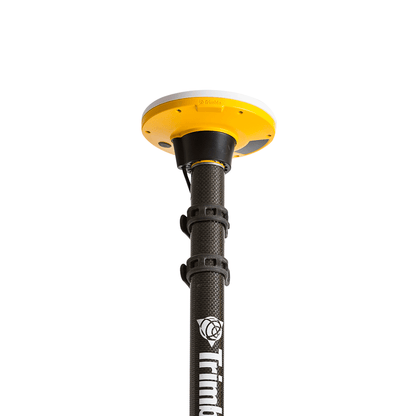

TRIMBLE Catalyst DA2 GNSS

Real-time geodetic positioning has never been easier to determine

Trimble Catalyst is a revolutionary geodetic positioning technology, encompassing centimeter, decimeter, and sub-meter solutions, adapting to the needs of a variety of users through a wide range of subscriptions.

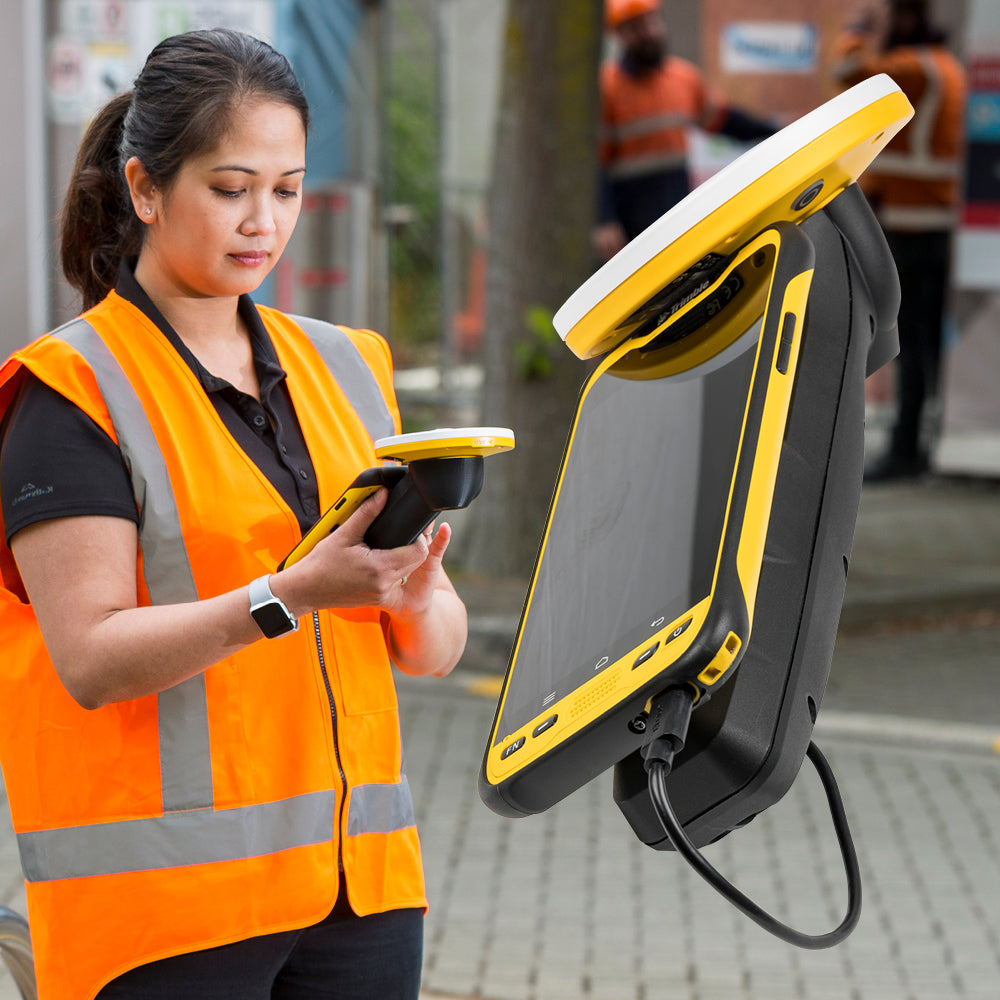

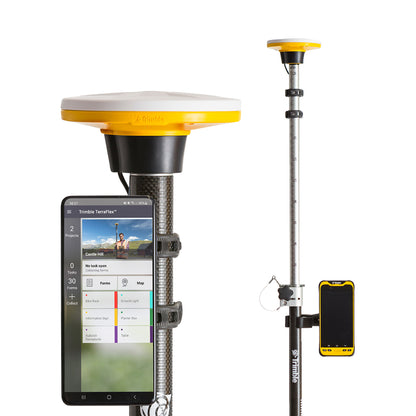

Use Trimble DA2 with your own phone and the field software that best suits you or use Trimble controllers.

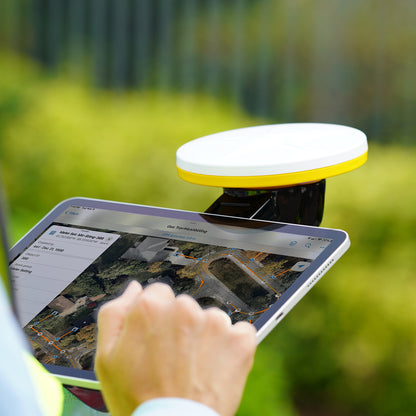

Trimble Catalyst DA2 is compatible with iOS and Android via a Bluetooth link, making it an extremely versatile and lightweight device that can be used with minimal instruction.

The operation of Catalyst DA2 is directly supported by the Trimble Corrections Hub which transmits corrections either by satellite or by internet, achieving RTX positioning without the need for a GNSS base, or by receiving differential corrections over the internet from an established GNSS base to perform RTK positioning.

What are corrections?
Corrections, which are sent by the Trimble Corrections Hub, are applied to the raw GNSS data collected by DA2, making it possible to calculate precise and reliable positions. This is called Catalyst technology, which simplifies the way precise geodetic positioning is performed.

Can I work offline?
Yes. Before first use, an internet connection is required to install the software, then geodetic positions are determined via satellite RTX. In the case of Catalyst On Demand, it is necessary to start in a location with mobile internet coverage.

Available accuracies
From centimeter to sub-meter positional accuracy, you just need to choose the Catalyst subscription level that suits your needs.

⨭Simple, precise, sub-meter to centimeter level GNSS accuracy

⨭Scalable and flexible accuracy level according to subscription

⨭Lightweight and robust design

⨭Easy to install and configure

⨭Compatible with multiple frequencies (L1/L2/L5/MSS)

⨭Trimble ProPoint™ GNSS positioning technology

⨭Compatible with all global GNSS satellite constellation systems

⨭Flexible mounting options

⨭Connects wirelessly to iOS and Android™ devices

⨭Convenient USB power supply
