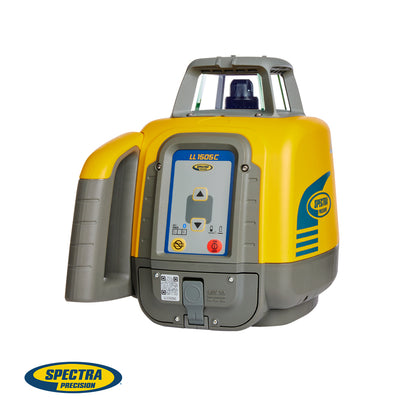

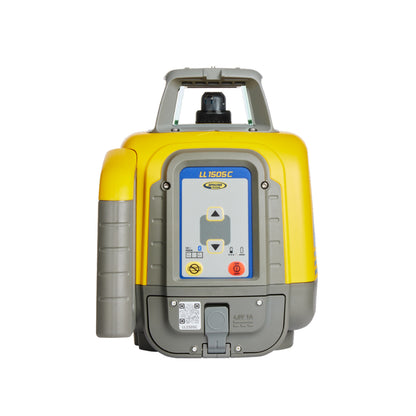

Spectra Precision LL1505C

The Spectra Precision® LL1505C self-leveling and automatic laser is the toughest leveling laser on the market, making it suitable for all types of general construction and concrete applications. The rugged laser can withstand drops from up to 1 m onto concrete and tripod rollovers from a height of up to 1.5 m. This durability, combined with its complete water and dust resistance, reduces downtime and repair costs over the product's lifetime.
The laser features Bluetooth® connectivity, allowing it to be controlled from your mobile phone with the Spectra Precision Laser Remote app. This eliminates the additional cost of a remote control.

When combined with the advanced HL760 digital readout receiver, the LL1505C offers the Plane Match function, which provides automatic tilt adjustment, allowing you to control the slope between two points on unknown terrain and avoiding wasted time on slope calculations.

1. General elevation control
2. Leveling and alignment of formwork and footings
3. Checking and adjusting elevations on small and medium-sized construction sites
4. Cut and fill calculations
5. Excavations
6. Basic slopes for ramps and vehicle access roads

• Single-person manual slope control
• Complete kit available in a single case with tripod and staff
• Energy-efficient design extends battery life
• Very robust construction allows it to withstand drops from a height of up to 1 m onto concrete
• Remote control and remote control app allow laser functions to be operated from anywhere on the job site
• Automatic horizontal self-leveling
• Accuracy of 1.5 mm per 30 m
• Operating range of 1200 m diameter with HL760 receiver
• Bluetooth connection allows laser control via smartphone
• Instrument height alert: the unit stops rotating in case of vibrations to prevent erroneous readings
• Simple keypad for easy slope adjustment


• Selectable rotation speed is ideal for working with machine-mounted receivers


• Power versatility: charge batteries installed in or out of the laser. Alkaline batteries can also be used


• Very durable and portable


• 5-year warranty
