Dual-frequency single-beam echosounder for versatile and accurate hydrographic surveys

Seafloor HydroLite SF30/200

The HydroLite™ SF30/200-26/9 is the latest dual-frequency (30 kHz / 200 kHz) single-beam echosounder in the HydroLite™ line, designed to offer greater operational flexibility in hydrographic and bathymetric surveys. It combines the simplicity and reliability that characterize the HydroLite™ family with the added ability to work in shallow and deep waters, as well as to analyze different bottom interfaces.

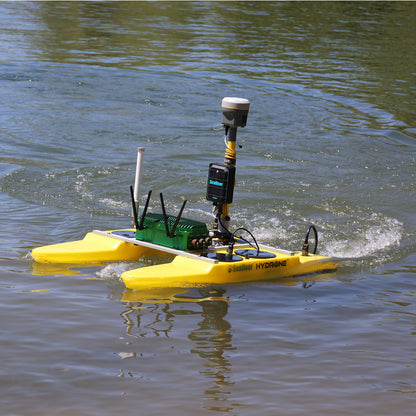

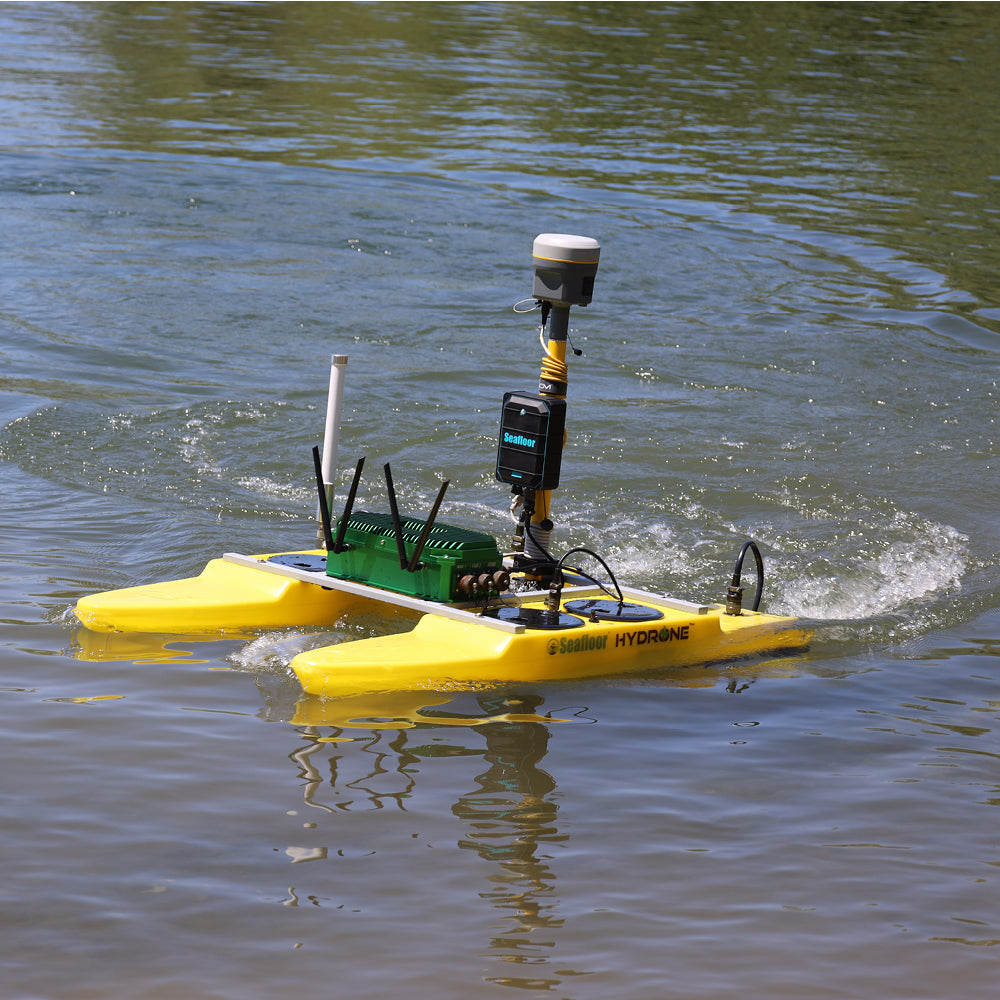

Thanks to its plug-and-play design, auto-ranging, internal battery, and extensive compatibility with leading software and GNSS, the SF30/200-26/9 integrates easily into manned vessels, USV platforms, and pole mounts, reducing setup times and field complexity.

Formulario de cotización

¿Necesitas más información de un producto? ¿Quieres solicitar una demo? Completa el formulario con tus datos y nos pondremos en contacto.
Characteristics

  • Integrated dual frequency
    Operation at 30 kHz and 200 kHz, allowing greater versatility depending on the bottom type and depth.
  • High depth accuracy
    Accuracy of 1 cm, suitable for professional hydrographic applications.
  • Wide operating range
    Measurement from 0.4 m to 200 m, covering applications in inland, coastal, and deeper waters.
  • Simple operation with auto-ranging
    Automatic adjustment of the measurement range, minimizing manual configurations.
  • Browser-based web interface (WebUI)
    Access to the equipment from a browser, without the need to install additional software.
  • Real-time data output
    Continuous transmission via Bluetooth, RS-232, or Wi-Fi to data collectors or acquisition software.
  • Robust design for field use
    Topside unit with IP-65 casing, designed for demanding working conditions.

Specifications

  • Frequencies: 30 kHz / 200 kHz
  • Beam width: 200 kHz: 9° conical / 30 kHz: 7 honeycomb type beams, 26°
  • Depth accuracy: 1 cm
  • Operating range: 0.4 – 200 m
  • Ping rate: 1 Hz
  • Power supply: internal battery 14.4 V / 45 Wh
  • Communication interfaces: Serial (DB9), Bluetooth, Wi-Fi
  • Output formats: NMEA 0183, ASCII, Sonarmite DFX

GNSS compatibility and software:
Trimble, Leica, Topcon, Sokkia, Epoch, Carlson, HYPACK, QPS, EIVA, PDS 2000.

Included components:

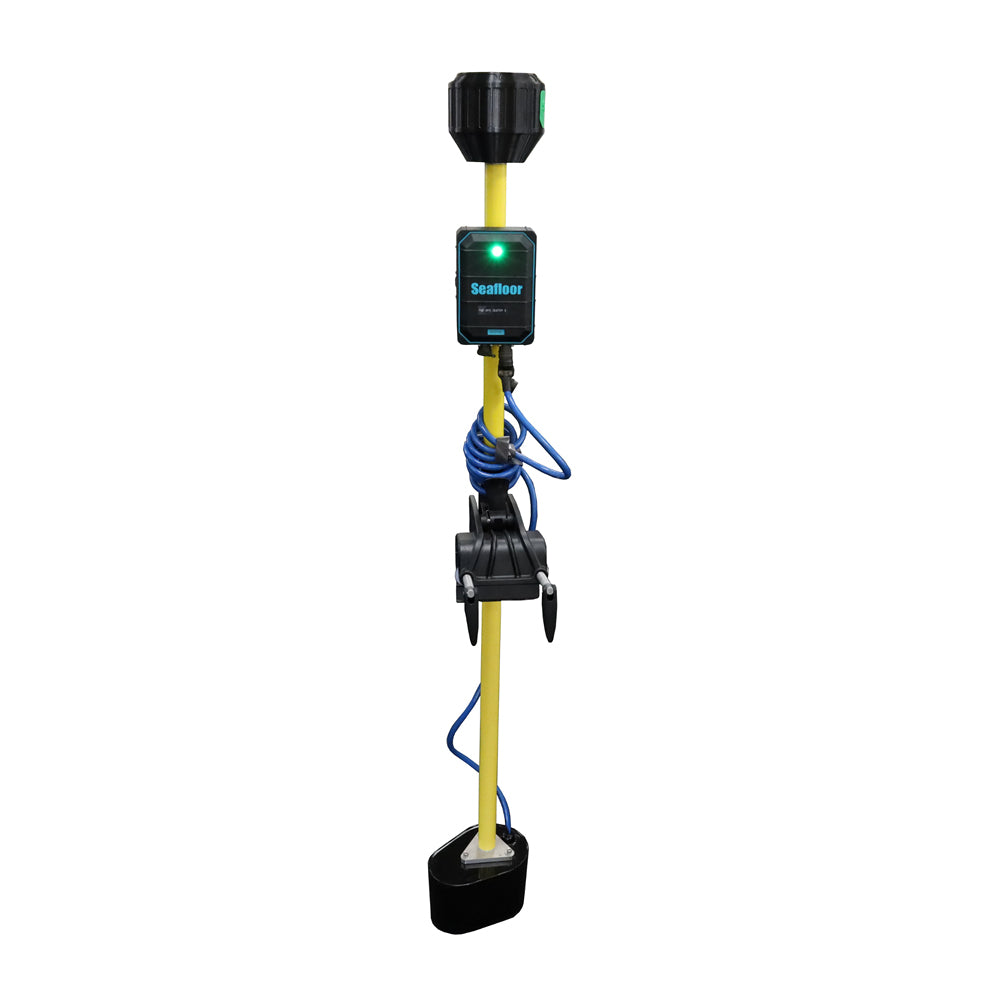

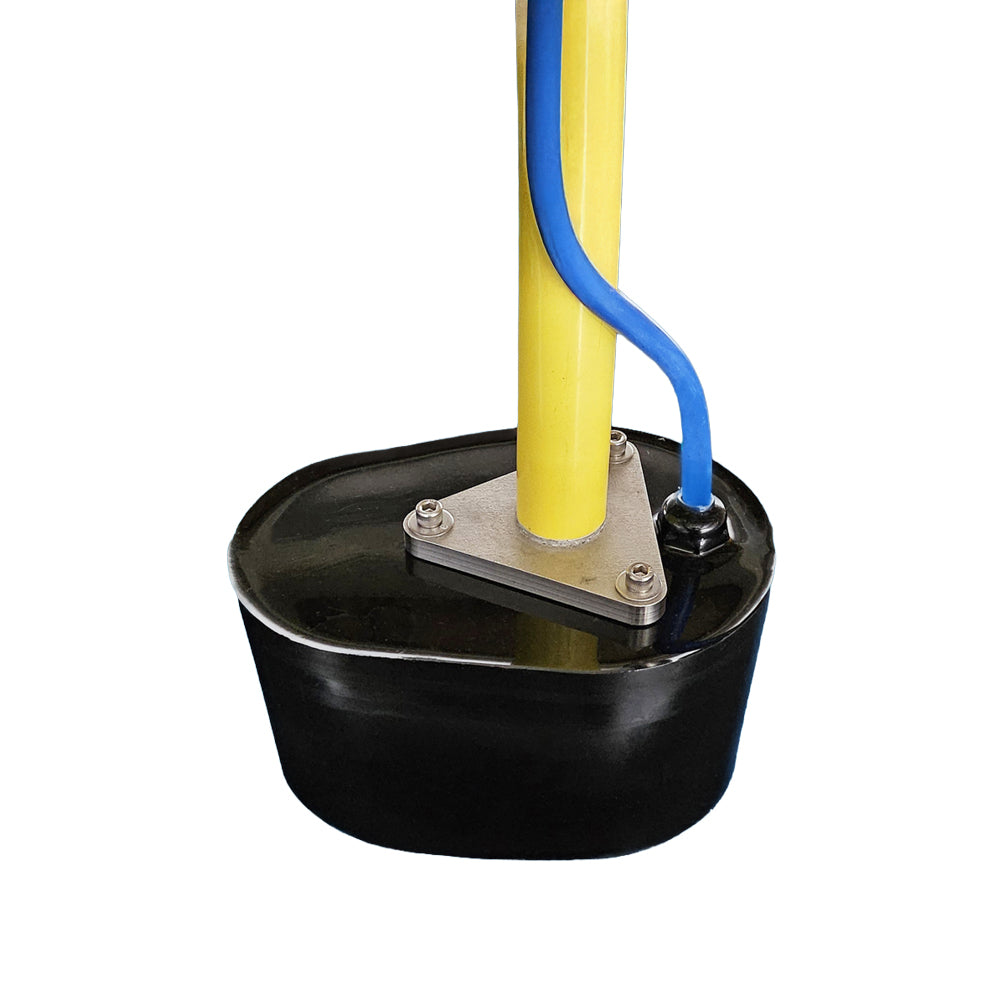

HydroLite™ topside unit, 30/200 kHz dual-frequency transducer, pole or transom mount, carrying case, user manual, 12-month limited warranty, and lifetime technical support.
