Professional USV platform for high-precision hydrographic and bathymetric surveys

Seafloor EchoBoat

Name: Seafloor EchoBoat
Brand: Seafloor
Price: 100000000 CLP
Availability: InStock

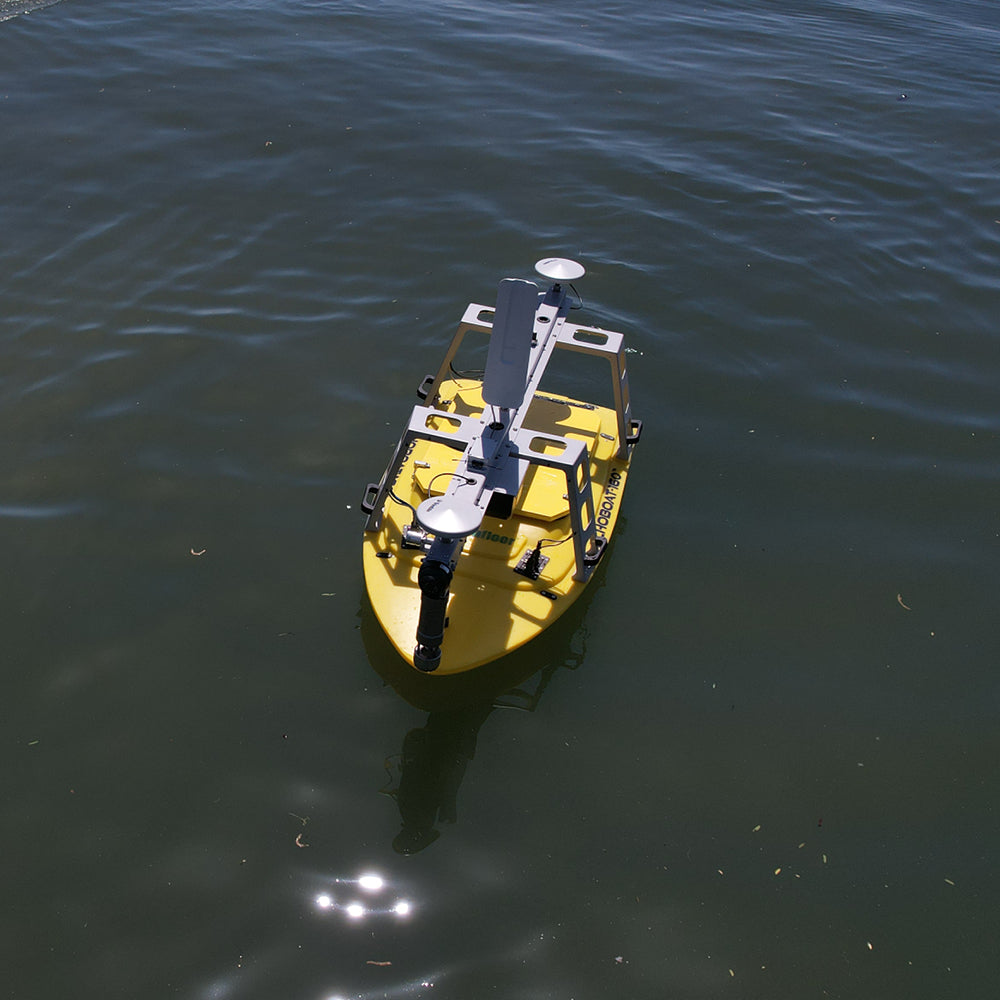

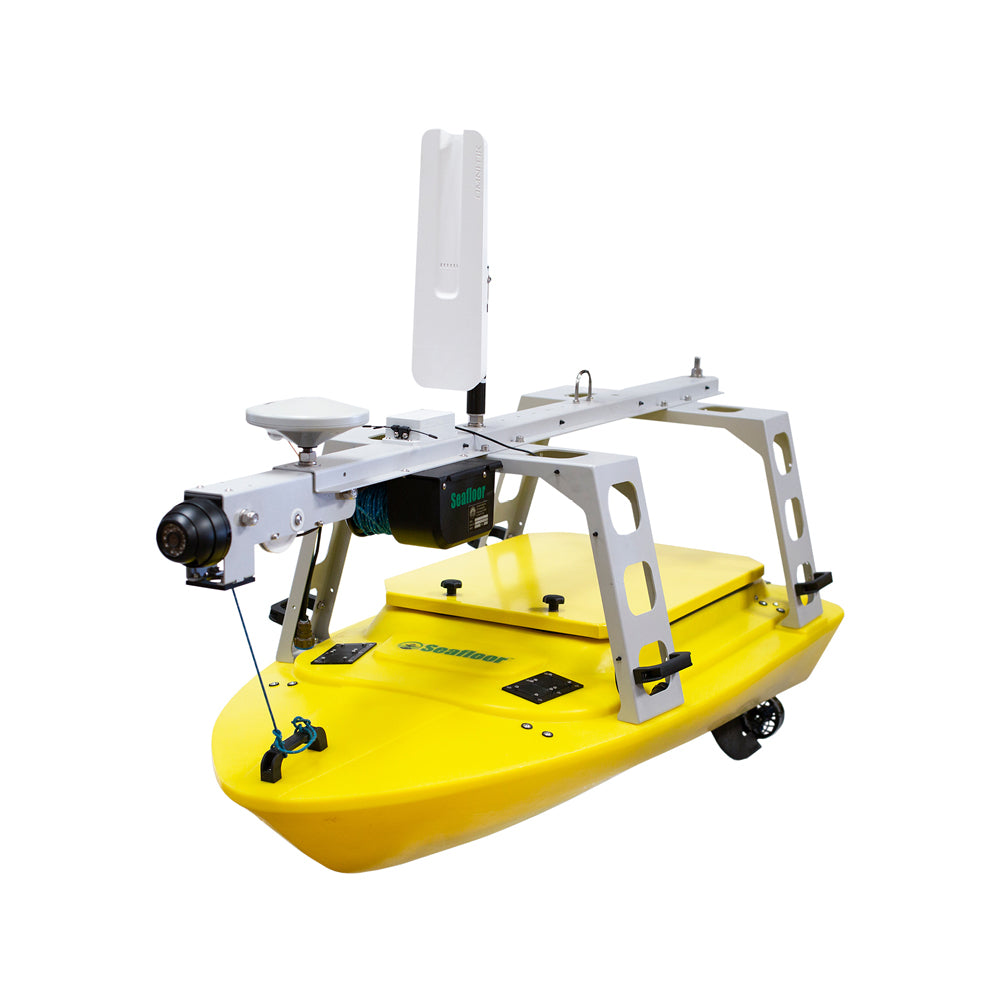

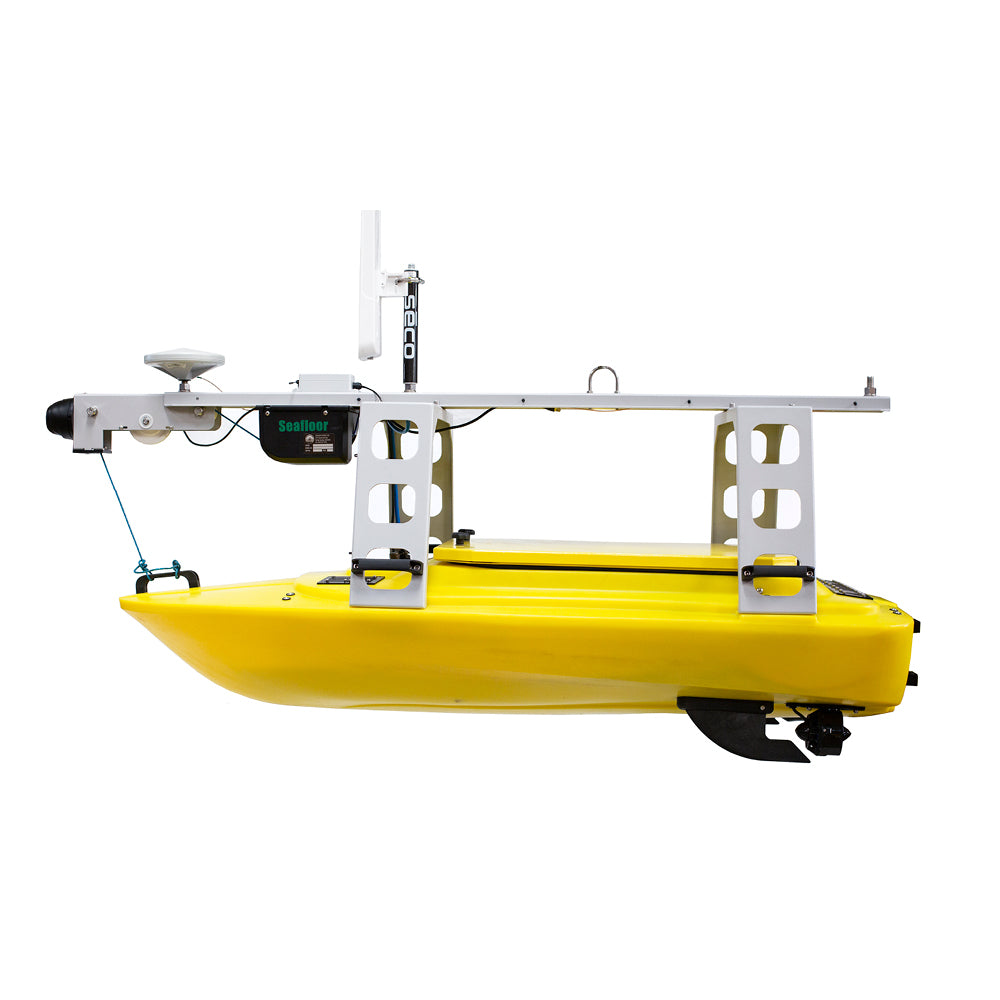

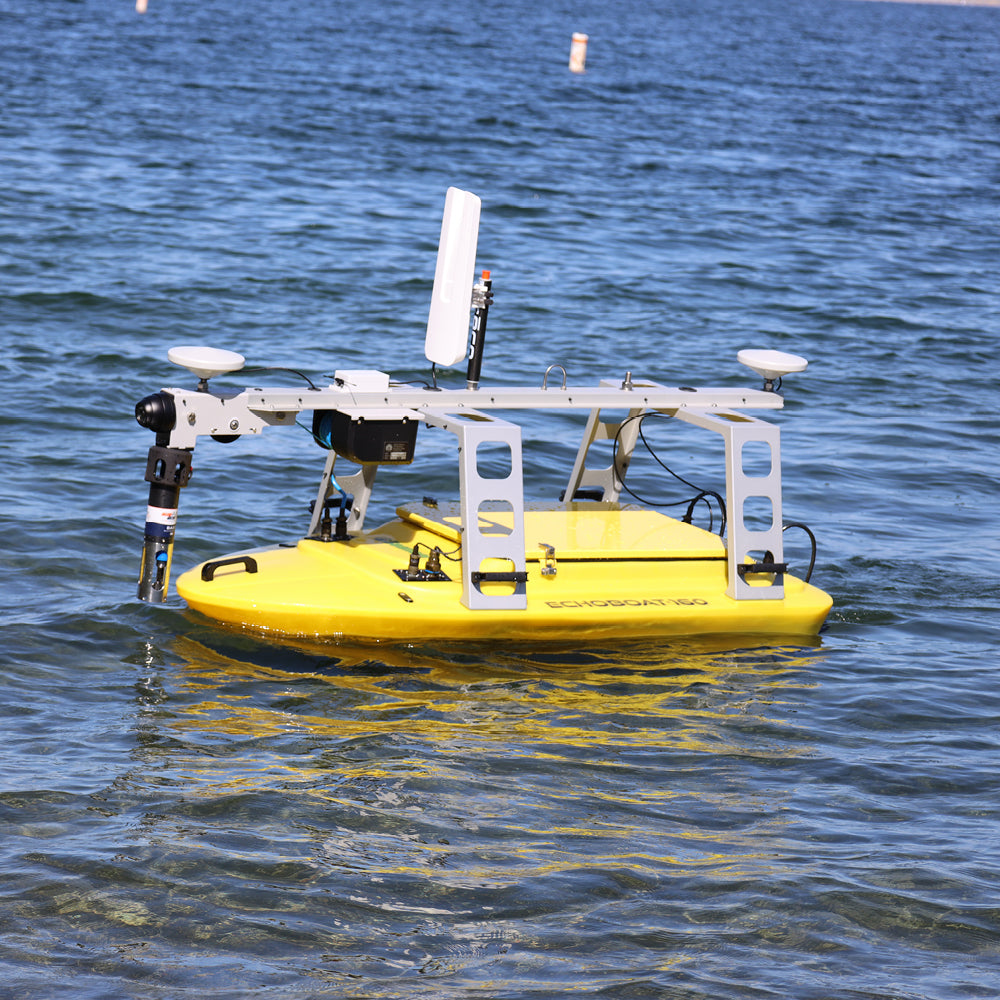

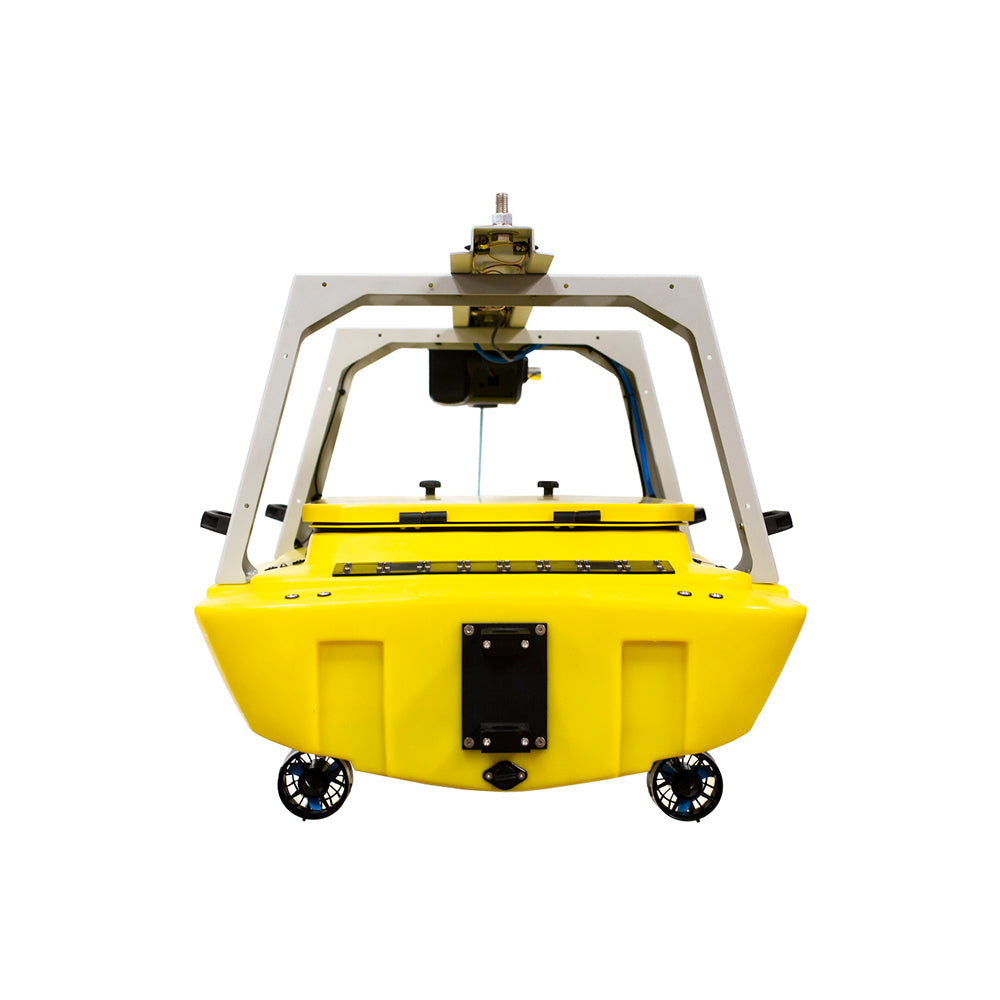

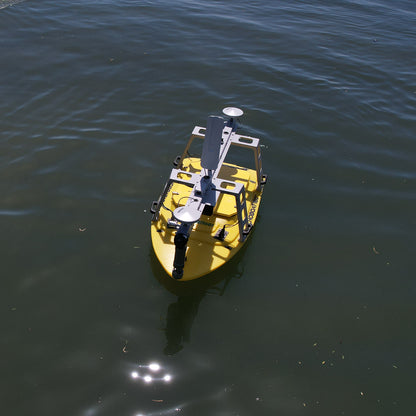

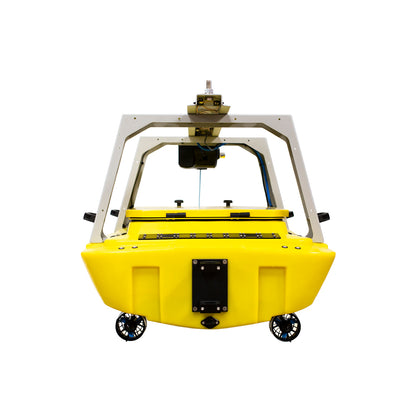

The EchoBoat-160™ USV is an unmanned surface platform specifically designed for professional hydrographic data collection in complex environments. Thanks to its optimized design and its one-button start system, the EchoBoat-160™ achieves the same results demanded of larger manned vessels, but more efficiently, safely, and at a fraction of the operating cost.

As the fifth generation of a field-proven platform, the EchoBoat-160™ integrates professional-grade hydrographic sensors in a compact format, capable of navigating challenging bodies of water via remote control or autonomous navigation. Its robust engineering and modular architecture allow for highly confident hydrographic surveys, minimizing personnel risk and optimizing operational times.

Characteristics

Platform designed for professional surveys
USV dedicated to hydrographic applications, with a robust structure and highly durable marine components.
Quick start with a single button
Simplifies field operations and reduces preparation times.
High payload capacity
Supports up to 27 kg, allowing the integration of multiple
sensors simultaneously.
Reliable propulsion and control
Two brushless DC motors with stable and precise control for continuous operation.
Remote control and autonomous navigation
Available in remote-control (RCV) and autonomous navigation configurations, depending on project needs.

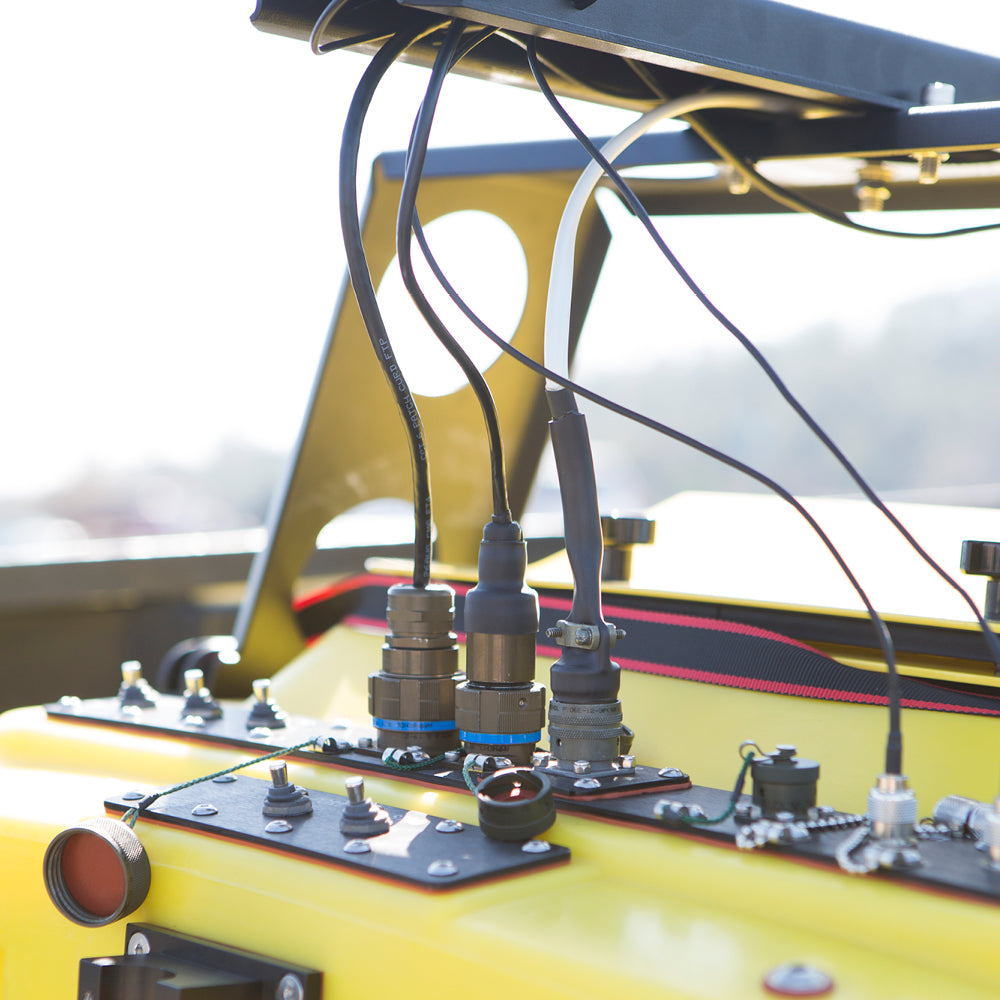

Wide sensor compatibility
Compatible with singlebeam and multibeam echosounders, ADCP, side scan sonar, sub-bottom profiler, magnetometer, and auxiliary sensors.
Autonomy for full workdays
Up to 8 hours of operation at survey speed.

Specifications

Velocidad de levantamiento: 2 nudos
Velocidad máxima: 3 nudos (dependiente de la carga)
Longitud del casco: 1.7 m
Ancho del casco: 0.8 m
Material del casco: HDPE resistente a rayos UV
Estructura: aluminio con recubrimiento en polvo
Peso del casco vacío: 50 kg
Carga útil: hasta 27 kg
Autonomía: hasta 8 horas a velocidad de levantamiento
Propulsión: 2 × motores brushless DC
Comunicaciones: telemetría UHF 2.4 GHz
Alcance del control remoto: hasta 2 km
GNSS: compatible con todas las marcas (a especificar por el cliente)

Sensores disponibles (opcionales):
Monohaz, multihaz, ADCP/DVL, side scan sonar, sub-bottom profiler, magnetómetro, LiDAR, perfilador de velocidad del sonido, CTD, cámara HD térmica, cabrestante remoto para perfiles SVP, Wi-Fi Remote Desktop.
