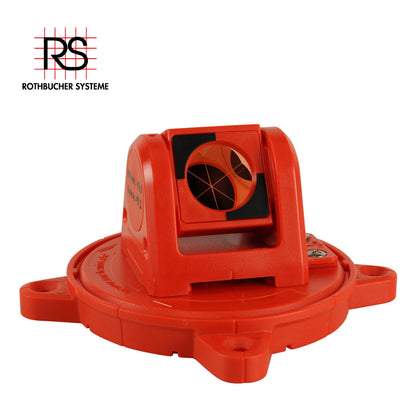

RSMP390M | Mini Prisms with tilt and swivel function

There is a wide range of accessories for mounting prisms on different surfaces. Solutions for a wide variety of mounting requirements on glass, on rocks, on historical buildings, oil and gas pipelines, on metal, and many other difficult surfaces are part of the standard repertoire.

⨭The prism can always be precisely aimed at the measuring instrument

⨭The prism can be rotated 360°, so the same surveying measurement point can be used from almost all directions

⨭Bridges, facades, and other objects can be observed even faster and more precisely

⨭Permanent settlement measurements can be carried out during construction work

A product from the "A fixed point for all instruments" series

RSMP390 Mini prism: in ATR mode, ranges of 500 to 700 m are achieved.
Ranges depend on the device and are reduced by weather and environmental conditions.

By using known measurement points, robotic total stations can achieve ranges of up to 1,000 m. For measurements in manual mode, ranges of approx. 200 m are achieved depending on the focus.

DOWNLOAD DATASHEET
