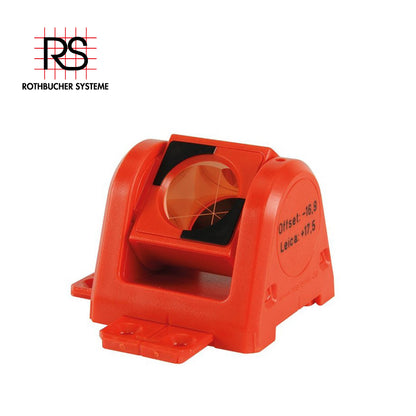

RSMP380 | Mini Prisms with tilt function

When using these mini prisms, the measuring point can always be precisely oriented towards the measuring instrument and rotated within a 180° radius. This allows the same surveying measuring point to be used from different directions. The integrated insertion system allows the prisms to be combined with each other, making it possible to measure from different directions without having to rotate the prism.

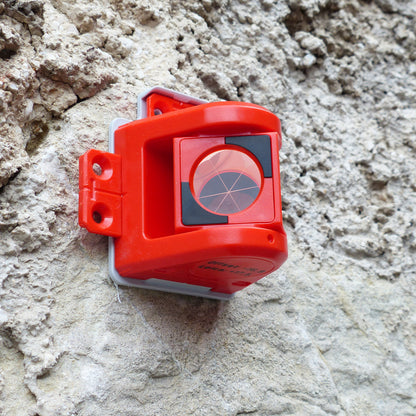

If the RSFP-X80 resumption point is used, the prisms can also be easily used in complicated terrain with our RSMK-FIX mounting adhesive. After the measurements are completed, they can be removed quickly and easily and, if necessary, reinstalled. The RSFP-X80 resumption point is designed so that the prisms can be snapped exactly in the center in two directions. This allows the same surveying measuring point to be used from almost all directions! When using the RSFP-X80 resumption point in combination with strong vibrations (e.g. monitoring on tracks), the prisms can be fixed with small screws at the resumption point if necessary.

Mini prism RSMP380: In ATR mode, ranges of 500 to 700 m are achieved.
Ranges depend on the device and are reduced by weather and environmental conditions.

The RSMP380 prism is also available in a special magnetic version for monitoring rails and steel structures, Item RSMP380M*:

⨭Exceptionally fast installation, even on wet surfaces

⨭No need to clean the substrate

⨭The prism or magnet are available separately

⨭The product has been tested in the most demanding weather conditions!
