RS96R | Reticle Sight Trace Guide

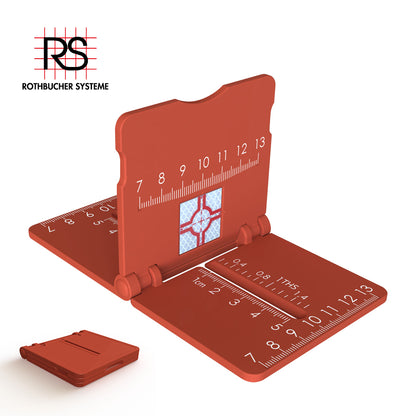

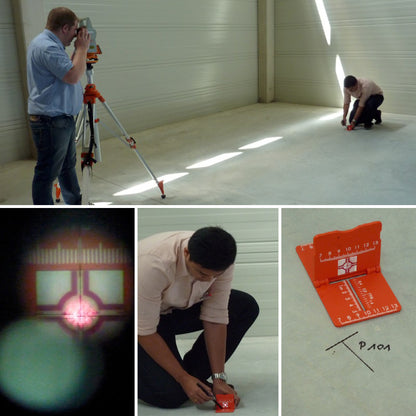

The RS95, RS96, and RS97 tracing aids have been specially developed for tracing work on staking frames and on a base plate. The precise adjustment of the topographic measurement point on the base plate often involves great problems, especially in the "final phase" in the last 5-10 cm. Due to the back and forth, advancing and retracting of the prism pole, the work takes a long time and it must always be ensured that the prism pole is exactly plumb. The RS95 tracing aid or the folding RS96 or RS97 tracing aid is placed on the ground and with the graduated scales, the assistant can quickly and accurately complete and transfer the surveyor's directional indications.

⨭Facilitate axis adjustment on staking frames

⨭Measurements on the base plate can be taken quickly and accurately

⨭Surveyor's directional data can be transferred quickly and precisely

⨭No need to precisely probe the prism pole

⨭Orientation scales for left and right – number 10 corresponds to the axis

⨭Orientation scales for forward and backward

⨭Foldable: fits in any shirt pocket and any instrument case (RS96/RS97)

⨭With little practice, enormous time savings are achieved
