RS150M | Layout Guide for Robotic Total Stations

A new and innovative solution for quickly and precisely laying out measuring points on horizontal or vertical surfaces with robotic total stations.

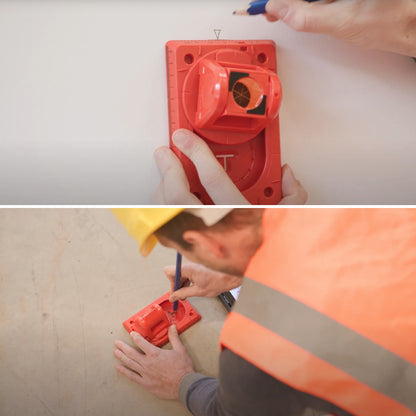

Once the point to be measured is reached, simply by sliding the prism from position A to position B and vice versa, the respective measuring point is exposed directly below the prism and can be marked directly through a cutout in the base plate.

⨭Quick and precise stakeout

⨭Direct marking of the measuring point on horizontal and vertical surfaces

⨭With a height offset of 50 mm set in the total station, heights can be marked directly on the upper or lower edge without having to move the prism.

⨭The prism always remains aligned with the instrument

⨭It is usually not necessary to secure the horizontal position with a spirit level, as the axial tilt height is only 50 mm.

⨭Scales for quickly transferring correction values to the last millimeter

DOWNLOAD DATASHEET
