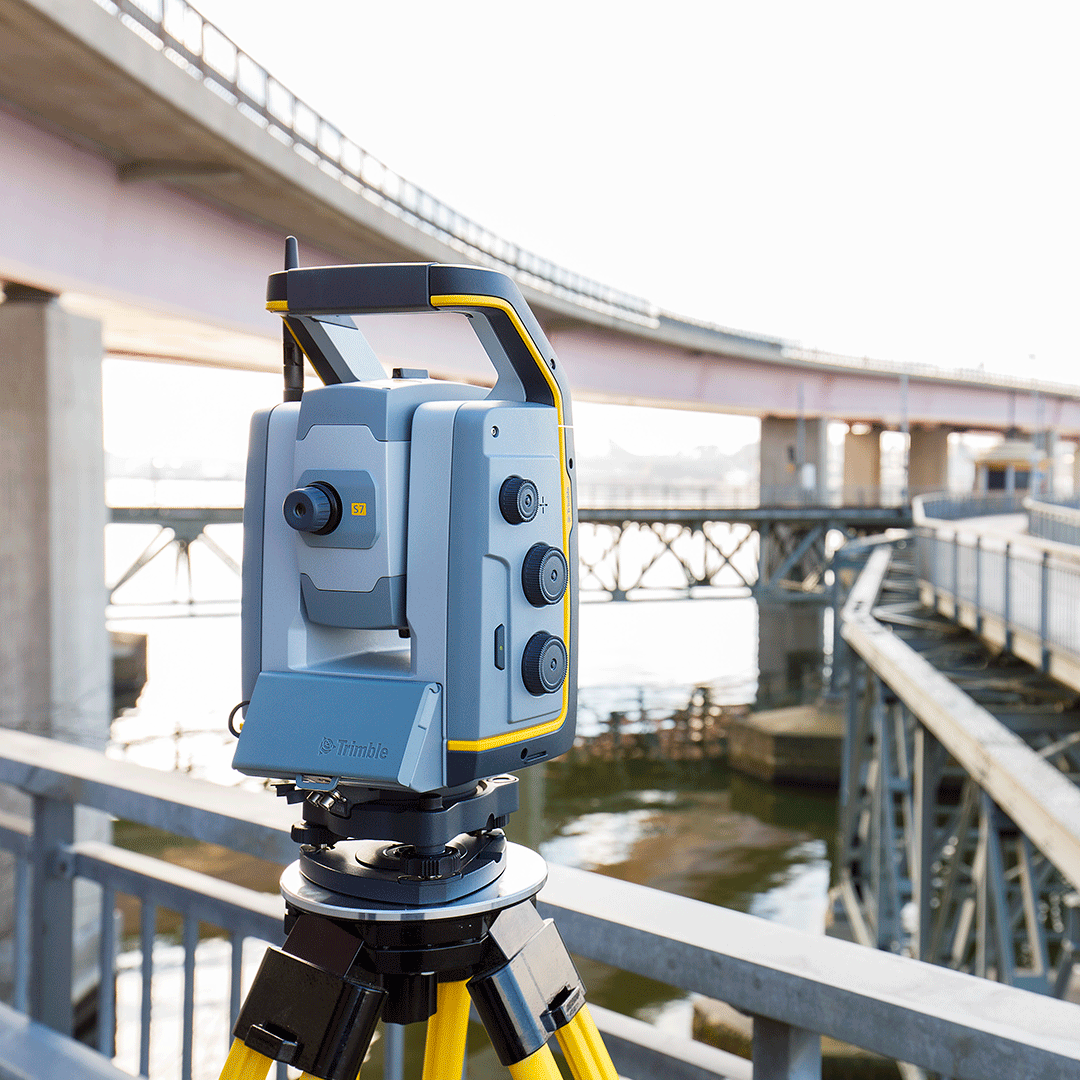

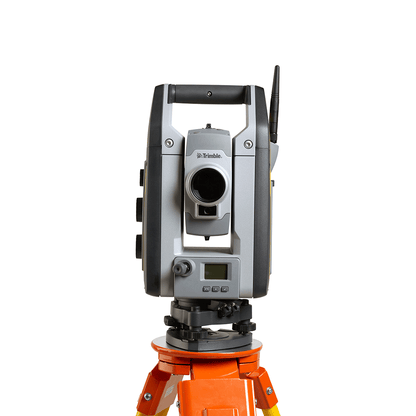

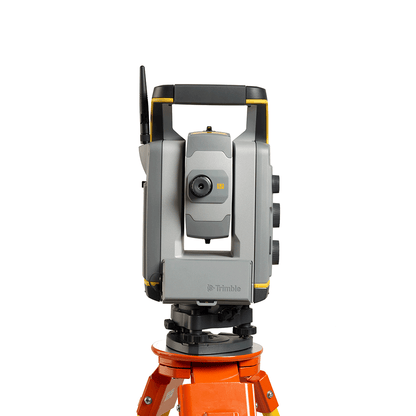

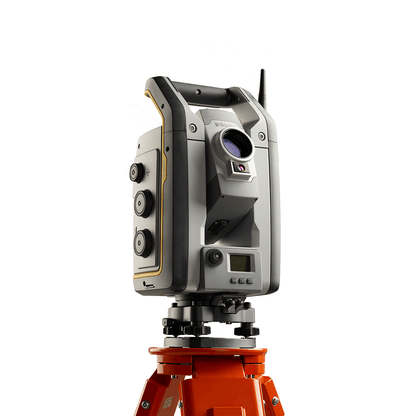

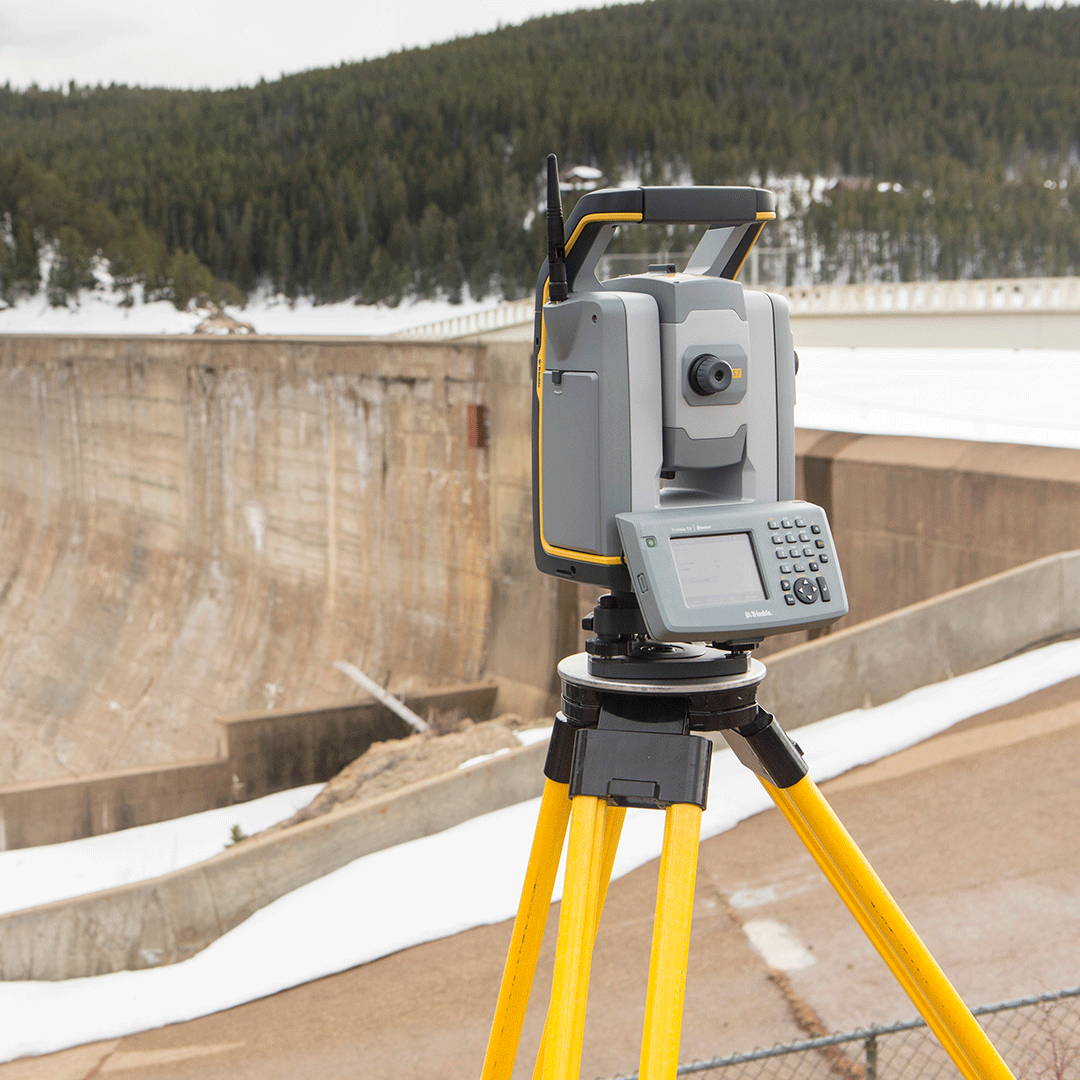

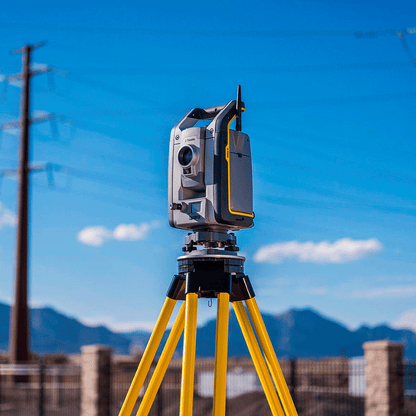

Trimble S7 - Total Station

The Trimble S7 Total Station represents the evolution in multifunctional surveying equipment, combining advanced robotic technology, 3D scanning, and image capture with the precision required by modern surveying. Designed for professionals seeking productivity and accuracy in every measurement, this robotic total station optimizes workflows in construction, forensic engineering, and specialized topographic surveys.

+ EXCEPTIONAL ANGULAR ACCURACY

• Angular accuracy available in: 1", 2", 3" or 5"
• EDM Technology: Latest generation DR Plus
• Measurement accuracy: 1.0 mm + 2 ppm with prism / 2.0 mm + 2 ppm without prism
• Maximum range: 5,500 meters

+ INTEGRATED TRIMBLE TECHNOLOGIES

• Trimble VISION: Integrated camera with live video and panoramic image capture
• SureScan Technology: 3D scanning at 15 points per second with homogeneous grids
• FineLock Technology: Advanced automatic prism tracking
• Trimble MagDrive: Silent rotation at 115 degrees per second


+ SINGLE OPERATOR OPERATION

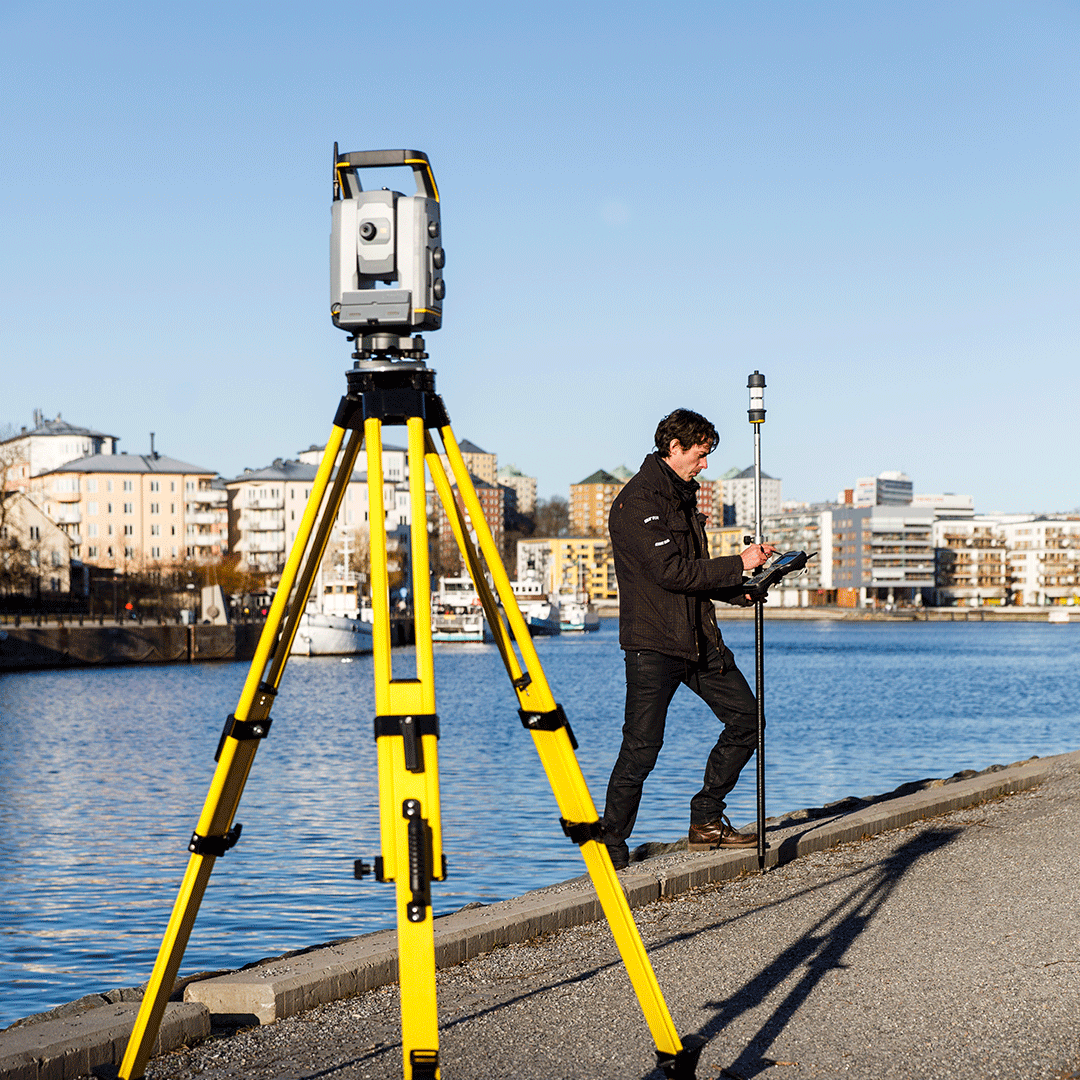

The Trimble S7 total station allows for efficient individual work, reducing operating costs and increasing field productivity. Its robotic system eliminates the need for multiple operators for topographic surveying and 3D scanning tasks.

+ TRIMBLE ACCESS FIELD SOFTWARE

Compatible with Trimble controllers that include the powerful Trimble Access software, providing:

• Intuitive and customizable workflows
• User-friendly interface for greater efficiency
• Reduction of human errors in data capture
• Advanced connectivity for information transfer

+ RESISTANCE AND DURABILITY

Built with high-quality materials to withstand harsh field conditions, ensuring reliable operation in construction, mining, and civil engineering projects.

Optical System with VISION Camera

• Advanced optics with automatic compensation
• Viewer with illuminated reticle
• High-visibility LCD screen
• Integrated Trimble VISION camera for live video

3D Scanning Capabilities

• Scanning speed: 15 points per second
• Generation of high-density point clouds
• Creation of professional 3D models
• Synchronization of images with topographic data

Power and Connectivity

• Long-lasting rechargeable battery
• USB port for data transfer
• Bluetooth and WiFi connectivity
• Integrated UHF radio for robotic operation

Guaranteed Return on Investment

The operational efficiency of the S7 significantly reduces measurement and scanning times, allowing for more projects to be completed with greater accuracy and lower operating costs.

Professional Technical Support

As authorized Trimble distributors, we offer specialized technical support, personalized training, and guaranteed after-sales service.

Globally Proven Technology

Trimble is a world leader in positioning solutions, with over 40 years of experience in surveying and geodetic technology.

Available Models and Configurations

The Trimble S7 Total Station is available in multiple configurations to suit different needs and budgets:

• S7 with VISION: With integrated camera and live video
• S7 with SureScan: With 3D scanning capabilities at 15 points per second
• Different accuracies: 1", 2", 3", and 5" as required
• Special configurations: For forensic engineering and BIM applications

Download Datasheet
