Professional and marker-free 3D scanner

3DeVOK MT Scanner

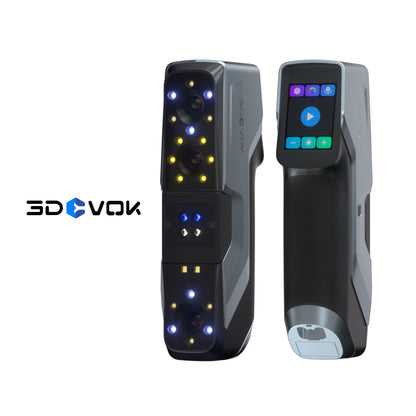

PROFESSIONAL, MARKER-FREE 3D SCANNER

The new 3DEVOK MT professional 3D laser scanner is the latest innovation from the Scantech brand. Its technical specifications, with 3 light modes and large area capture capability, will allow you to achieve excellence in your industrial process, with optimal results. 3DVOK is robust, efficient, adaptable to complex surfaces, and very comfortable to use, requiring no markers in the process.

Robust, efficient, and flexible solution

  • Marker-free: Marker-free 3D scanning supports three light source modes, ensuring easy operation. Its plug-and-play design further enhances on-site scanning efficiency.
  • Exceptional resolution: Accurately capturing complex textures and intricate details for objects larger than 5 cm.
  • High precision: Offers high precision and quality 3D data thanks to its real-time meshing algorithms.
  • Vivid color restoration: Supports 24-bit high-definition color scanning, enhanced by high-resolution camera images and texture mapping, providing a true-to-life image.
  • Advanced hybrid alignment: With advanced alignment technologies for geometry, texture, and markers, it ensures smooth alignment with minimal or no markers.
  • Fast and stable scanning: Captures data at a speed of up to 4.5 million points/s with a high frame rate of 70 fps. It offers smooth and stable scans of medium and large objects, thanks to its scanning area coverage.

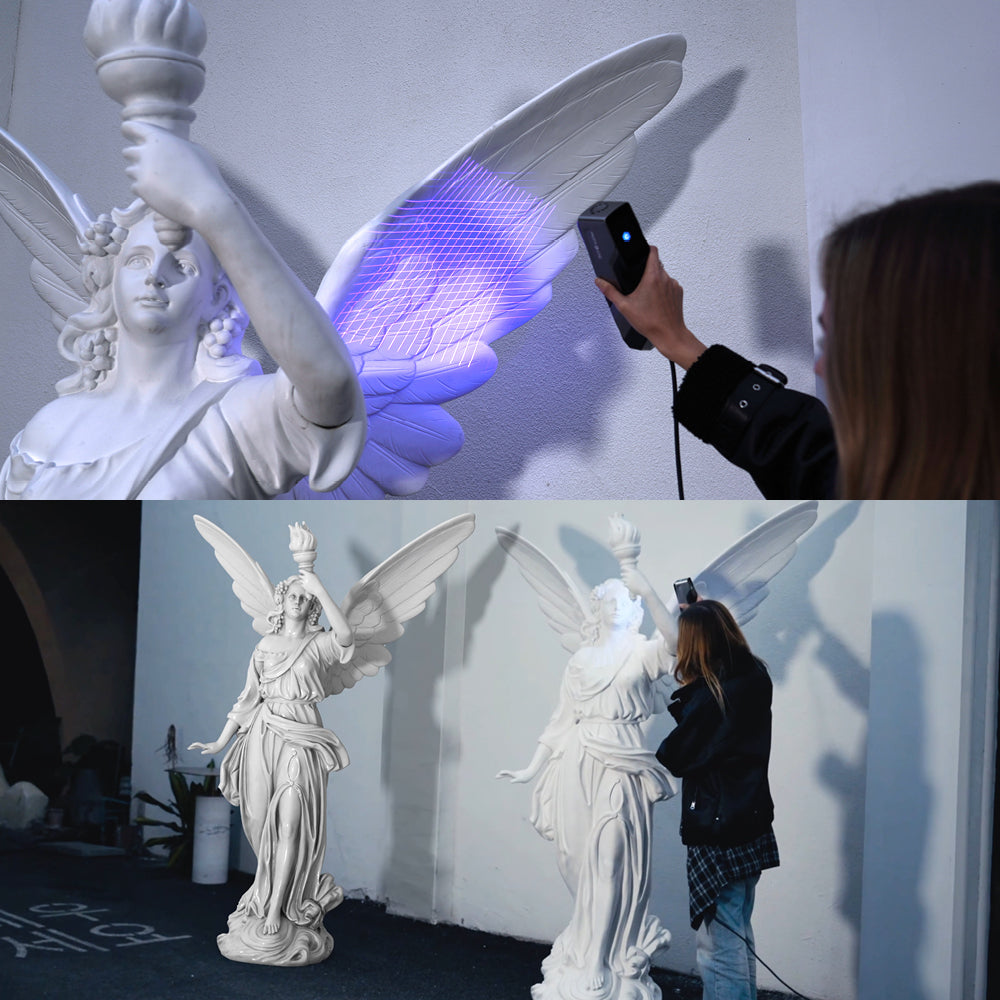

  • Multi-dimensional scanning: Allows scanning of objects between 0.05 m and 5 m, making it perfect for all types of parts, medium and large items, art pieces, human bodies, etc.
  • Adaptable to various environments: Works effectively indoors, outdoors, in low light, and even in direct sunlight, ensuring reliable results in any environment.
  • Handles complex materials: Works on difficult-to-capture objects, including black and reflective objects, black hair, and multi-colored items.

⨭3 light modes: 34 blue laser lines + 22 infrared laser lines + large-area infrared speckle
⨭Maximum resolution of 0.05 mm
⨭Captures data at a speed of up to 4.5 million points/s with a high frame rate of 70 fps.
⨭Allows marker-free scanning
⨭Accuracy up to 0.04 mm+0.06 mm/m in marker-based alignment mode.
⨭Compact
⨭Scanning area per frame covers up to 1100 mm*1000 mm

Download Datasheet






Formulario de cotización

¿Necesitas más información de un producto? ¿Quieres solicitar una demo? Completa el formulario con tus datos y nos pondremos en contacto.
Characteristics

  • Libre de marcas: El escaneado 3D sin marcadores es compatible con tres modos de fuente de luz, lo que garantiza un funcionamiento sencillo. Su diseño plug-and-play mejora aún más la eficiencia del escaneado in situ.
  • Resolución excepcional:capturando con precisión texturas complejas y detalles intrincados para objetos de más de 5 cm.
  • Alta precisión:Ofrece datos 3D de alta precisión y calidad gracias a sus algoritmos de mallado en tiempo real.
  • Restauración de colores vivos:Admite escaneado en color de alta definición de 24 bits, mejorado por imágenes de cámara de alta resolución y mapeado de texturas, lo que proporciona una imagen fiel a la realidad.
  • Alineación híbrida avanzada:Con tecnologías de alineación avanzadas para geometría, textura y marcas, garantiza una alineación suave con marcas mínimas o sin ellas.
  • Escaneado rápido y estable:Captura datos a una velocidad de hasta 4,5 millones de puntos/con una alta frecuencia de imagen de 70 fps. Ofrece escaneados suaves y estables de objetos medianos y grandes, gracias a su cobertura de área de escaneo.
  • Escaneado en múltiples dimensiones:Permite escanear de objetos de entre 0,05 m y 5 m, por lo que es perfecto para todo tipo de piezas, artículos de tamaño medio y grande, piezas de arte, cuerpos humanos, etc.
  • Adaptable a diversos entornos: Funciona eficazmente en interiores, exteriores, con poca luz e incluso con luz solar directa, lo que garantiza resultados fiables en cualquier entorno.
  • Maneja materiales complejos: Funciona en objetos difíciles de capturar, incluidos objetos negros y reflectantes, pelo negro y artículos multicolores.

Specifications

⨭3 Light Modes: 34 blue laser lines + 22 infrared laser lines + large-area infrared speckle
⨭Max Resolution of 0.05 mm
⨭Captures data at up to 4.5 million points/s with a high frame rate of 70 fps.
⨭Enables marker-free scanning
⨭Accuracy up to 0.04 mm+0.06 mm/m in marker-based alignment mode.
⨭Compact
⨭Scanning area per frame covers up to 1100 mm*1000 mm

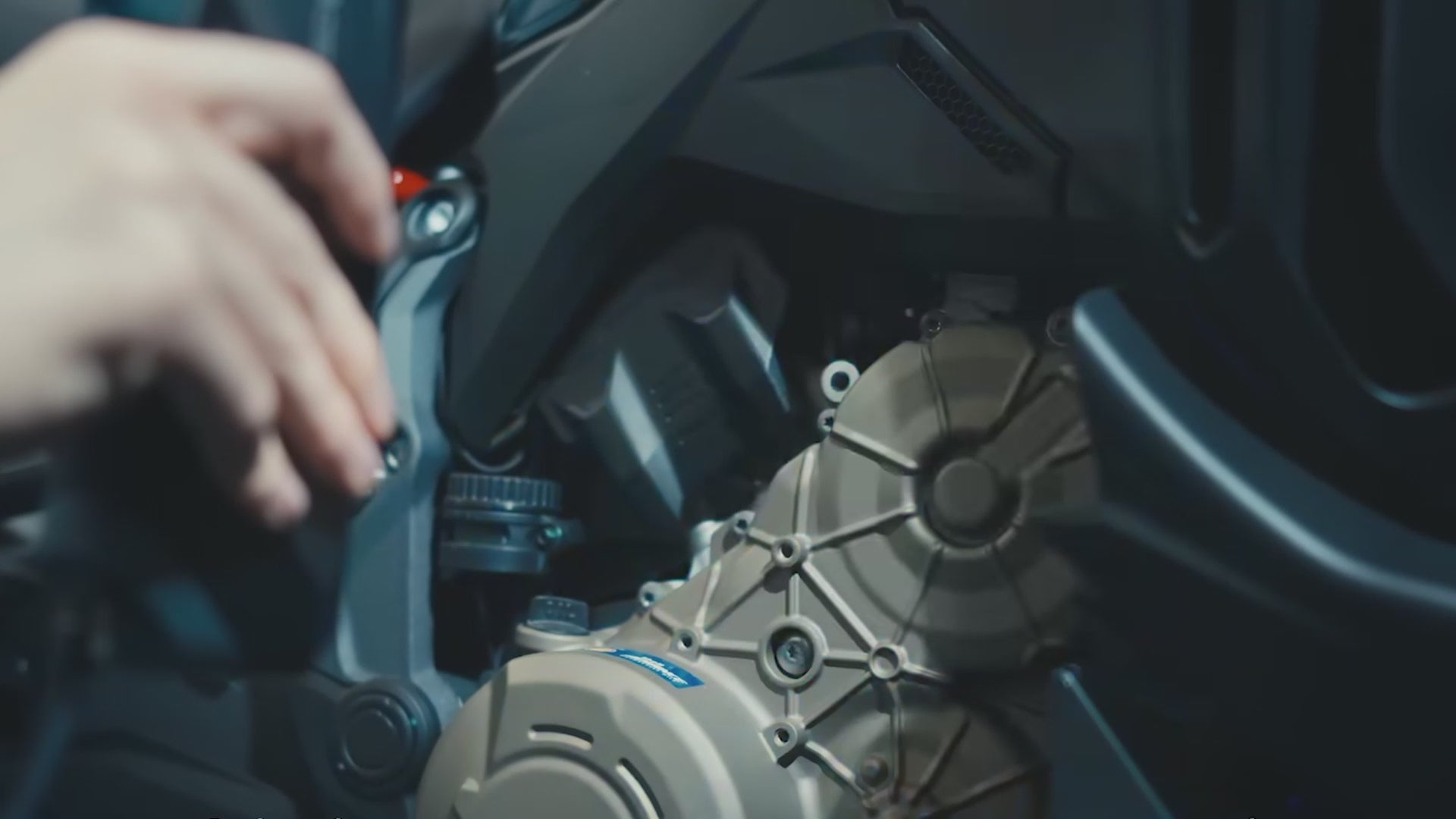

Video
