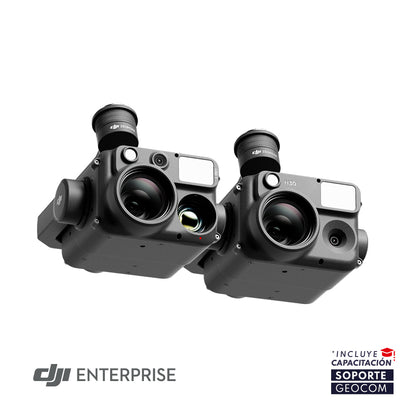

DJI Zenmuse H30 Series

The Zenmuse H30 series is the new advanced inspection camera for DJI Matrice 300 RTK (with RC Plus) and DJI Matrice 350 RTK drones. This multisensor camera integrates five main modules: a Wide-Angle camera, a Zoom camera, a laser rangefinder, an Auxiliary NIR light, and a Thermal sensor (the latter integrated into the Zenmuse H30T). Both the H30T and H30 are payloads designed for all weather conditions, even the most adverse operating environments.

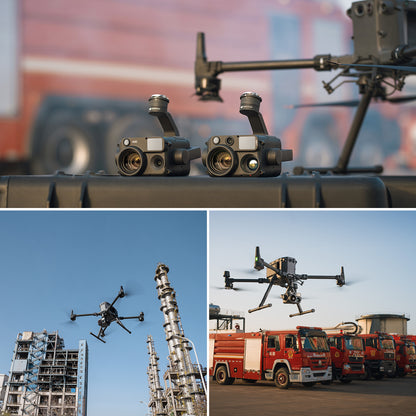

Through innovative smart algorithms, the H30 series revolutionizes perception and imaging standards, transcending the limitations of vision, both day and night. As such, it can easily perform a wide variety of operations, including public safety, infrastructure inspections in energy, water conservation, and forest management.

Further and Sharper Vision

The Zenmuse H30 Series features a 40 MP high-resolution zoom camera that offers up to 34× optical zoom and up to 400× digital zoom. Compared to the previous generation H20 Series, it not only observes targets from greater distances, but also captures more details. With the latest stabilization algorithm, the H30 can effectively reduce telephoto footage shakes, to deliver stable and sharp images for detailed power line inspections.
The rangefinder offers a range up to 2.5 times greater than the previous generation H20, to accurately capture target position information in a range of 3 to 3000 m, which includes the linear distance from the camera, altitude, and GPS coordinates.

Enhanced Night Vision

In low light, both the zoom and wide-angle cameras of the Zenmuse H30 Series can switch to Night Scene mode to improve live view quality, as well as recording. This ensures operational accuracy and efficiency at night to enable uninterrupted day-to-night operations. In Night Scene mode, the Zenmuse H30 Series supports IR light to enhance infrared images and NIR illumination. When the auxiliary NIR light is activated, the zoom camera can take advantage of additional NIR illumination, which is especially useful for covert night surveillance and search and rescue operations.

Improved Thermal Performance

The H30T's infrared thermal sensor offers a resolution of 1280×1024, four times that of the H20T, with up to 32× digital zoom. This allows for both an overall view of the entire scene and the ability to zoom in on specific areas. At higher zoom levels, the Zenmuse H30T automatically activates a UHR (ultra-high resolution) infrared imaging function, ensuring infrared images remain sharp.

The Zenmuse H30T has three infrared gain modes: high gain mode for more precise temperature measurement, low gain mode for a greater temperature measurement range, and the new high-resolution mode, which is especially useful for observing objects, people, or animals with small temperature differences, making it very practical for security, emergency, and search and rescue operations.

Smarter Multiscenario Operations

In Smart Capture mode, the Zenmuse H30 Series' zoom and wide-angle cameras automatically calculate ambient light brightness and dynamic range, and apply intelligent imaging algorithms. This ensures photos with natural transitions between highlights and shadows, and rich details, even in environments with high dynamics, intense light, or dim light.

When there is a lot of pollution or high atmospheric humidity, the Zenmuse H30 Series zoom camera uses a new electronic defogging function to increase image sharpness. It offers high and low defogging levels to adapt to different environments and operational requirements.

Superior Environmental Adaptability

With an IP54 dust and water resistance rating, the Zenmuse H30 Series can operate safely and reliably, even in adverse operating conditions. In addition, it is designed to operate in a temperature range of -20 to 50 °C (-4 to 122 °F), covering operational needs in all types of climates.

Further and Sharper Vision
⨭ Optical zoom up to 34× and digital zoom up to 400×
⨭ More stable telephoto images
⨭ Laser rangefinder up to 3000 m max.

Enhanced Night Vision
⨭ Enables full-color night vision
⨭ Enables black and white night vision and NIR illumination

More Powerful Infrared Performance
⨭ 1280×1024 resolution
⨭ High-resolution mode for precise observation
⨭ Simultaneous zoom for vision and infrared cameras
⨭ Temperature measurement range from -20 to 1600 °C (-4 to 2912 °F)

More Reliable Information Synchronization and Retention
⨭Supports pre-recording
⨭File and transmission encoding with one-click log deletion
⨭Cloud information synchronization for air-ground cooperation

Smarter Multiscenario Operations
⨭Smart Capture to enhance images
⨭Electronic defogging

Superior Environmental Adaptability
⨭IP54 ingress protection
⨭Operating temperature from -20 to 50 °C (-4 to 122 °F)
