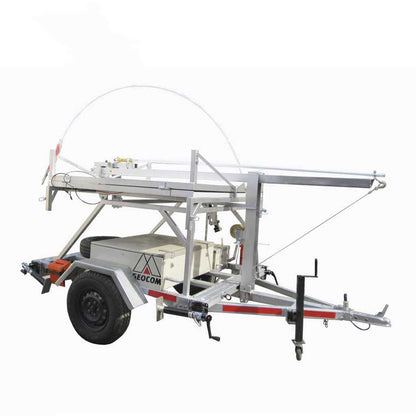

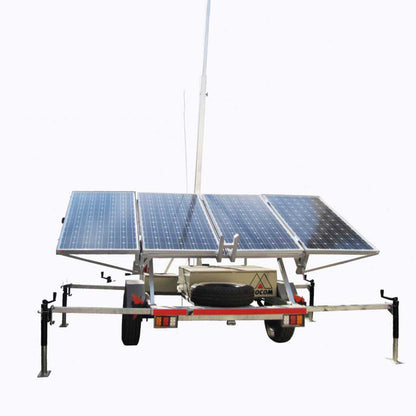

Solar pull cart - Autonomous energy

Description

The self-powered cart is an accessory for powering and housing equipment such as Base Stations, Repeaters, and Monitoring Stations.

It offers the versatility of having fixed topographic equipment in the required location without the need for civil works.

It is quick to install and can also be moved as the project progresses, to be located in the place that offers the best coverage for Real-time GPS link or better visibility for monitoring. It is very useful for use in road construction, civil works, open-pit and quarry mining, to provide coverage as the work progresses.

Specifications

The cart is dimensioned according to the power requirements of the equipment it will supply and the geographical location where it will be used.

It includes solar panels, GEL batteries, charge control, power and instrumentation cabinets.

We provide on-site delivery and training for its use and that of the topographic equipment.

Usable length 2.40 meters
Length with hitch drawbar 3.20 meters
Usable width 1.50 meters
Total width 1.90 meters
Load 800 Kilograms
Structure Galvanized metal
Antenna system
Foldable Accessories Fenders / Wheel chocks / Pole / 3kg fire extinguisher
Hitch drawbar "V" system Front hitch 2-inch hitch coupler Safety chains
2 Chains with shackles
Axle Mercedes Benz Suspension Multi-leaf spring packs
Wheels 2 wheels on axle plus spare.
Support legs 4 extendable galvanized uprights
Lights Regulatory, with 7-pin plug
