SHARE UAV PSDK 102S V3 Camera

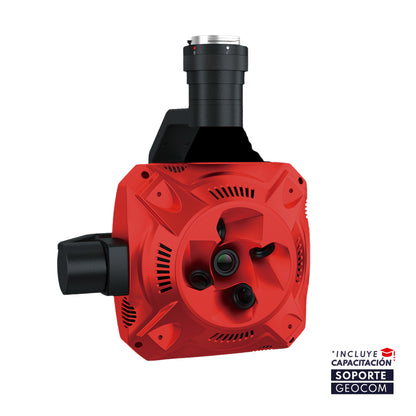

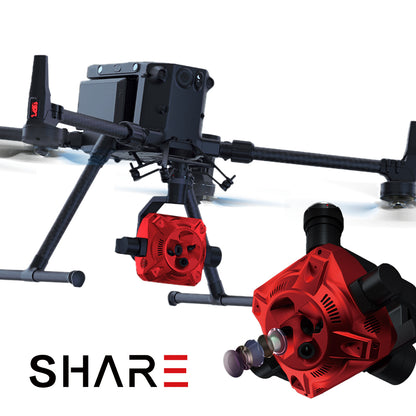

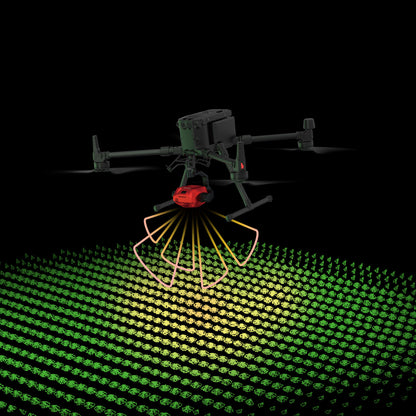

The PSDK 102S V3 SHARE UAV camera model has five lenses, one of which is oriented according to the nadir (90°) and the other four obliquely (45°). Each lens has a resolution of 25 MP, therefore, a total resolution of 125 MP is obtained in each capture. It has a 3-axis gimbal that guarantees camera stability, and the tilt angle can be adjusted by 180°. It has a global shutter that allows photos to be captured at high speed, improving efficiency and capture quality. It has excellent optical quality thanks to its new improved multi-layer coating and the low dispersion LD lens, which corrects distortions. The front lens is coated with a fluorine compound, which is water, oil, and stain-resistant.

Not only improves stability, but also allows multi-angle image capture: The smart 3-axis gimbal can ensure camera stability by detecting high overlap between the original data and the calculated aerial triangulation. The tilt angle can be freely adjusted by 180 degrees, allowing users to see more details in oblique photography.

Freely adjust camera parameters: The S-OPG mapping image control system, developed by SHARE, allows users to freely adjust camera parameters according to different weather and light conditions, extending working time to 9 hours. The camera is composed of five 25.16-megapixel image control sensors, showing excellent performance from pixel integration to image quality.

Long-life S-GS global shutter: The S-GS global shutter developed by SHARE UAV can stabilize the image at high speed, which improves capture efficiency and quality. The high-speed KIMOTO shading sheet with a double structure is integrated to reduce the friction coefficient, extending the lifespan by 3 times and shortening the shooting interval to 0.5 s/time.

Excellent optical quality: The improved multi-layer nano-coating and the low dispersion LD lens are used to correct aberration and achieve very high resolution. The front lens is coated with a fluorine compound, resistant to water, oil, and stains, effectively protecting the lens module.

Camera information display screen: The camera is equipped with a new and improved HD OLED color screen, which can display status and parameter settings in real-time, including body temperature, RAM, shutter life, and other useful information. It is intuitive and easy for user operation.

Instant POS activation and writing to photos: The TimeSync 2.0 synchronization algorithm is built-in, synchronizing time at microsecond level, independently and accurately recording centimeter-level position information from five views, and instantly writing POS data to photos. Highly developed image-free control technology is a new weapon for individual operation in aerial surveying.
